The motor mount is an essential piece to your DIY electric skateboard build. This is the foundation of the entire drive train, responsible for mounting your brushless motor and aligning your belt system. Our mount is designed to survive the harshest skating conditions. It’s CNC machined 6061 aluminum construction provides strength and precise mounting. The kit includes high quality metric hardware to prevent stripping from repeated installation. With a chamfered sandblasted black anodize finish, it is sure to add some style to your board.
The slotting features allow this mount to be rotated, flipped, and adjustable. Motor slots allow easy tensioning of various pulley and timing belt sizes. See specs below for detailed dimensions.
New 2021 version now in stock! More angle adjustability, refined shape, and 7mm thick (previous was 6mm).
Arm Thickness: 7mm
Clamp Thickness: 10mm
Center Distance: 56-68mm
Overall Length: 131mm

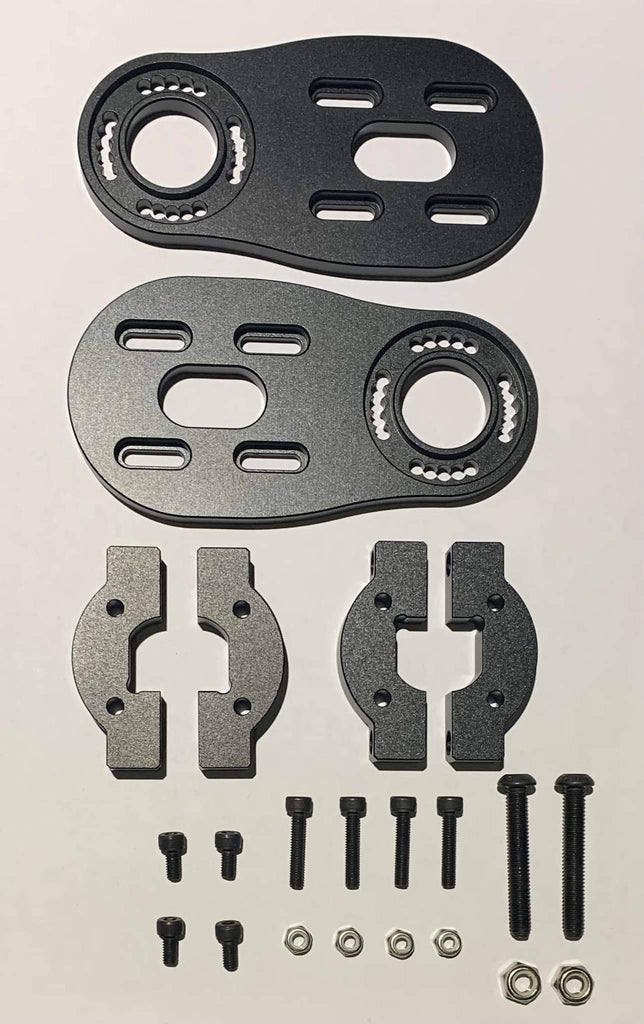

X4 Clamp Bracket
x8 M4 x 20mm 12.9 SHCS
x8 M4 A2 SS Nylon Locknut
x4 M6 x 40mm 12.9 BHCS
x6M6 A2 SS Nylon Locknut
x8 M4 x 8mm 12.9 SHCS
This mount holds 63mm motors and is compatible with genuine or clone Caliber II Trucks. Precision clamps available for BN220 Trucks.
The installation guide can be found here
The mounting holes for this mount are symmetrical, meaning the mount can be rotated over for drop-through mounting capability.
|Color:||Blue, Purple, White|
