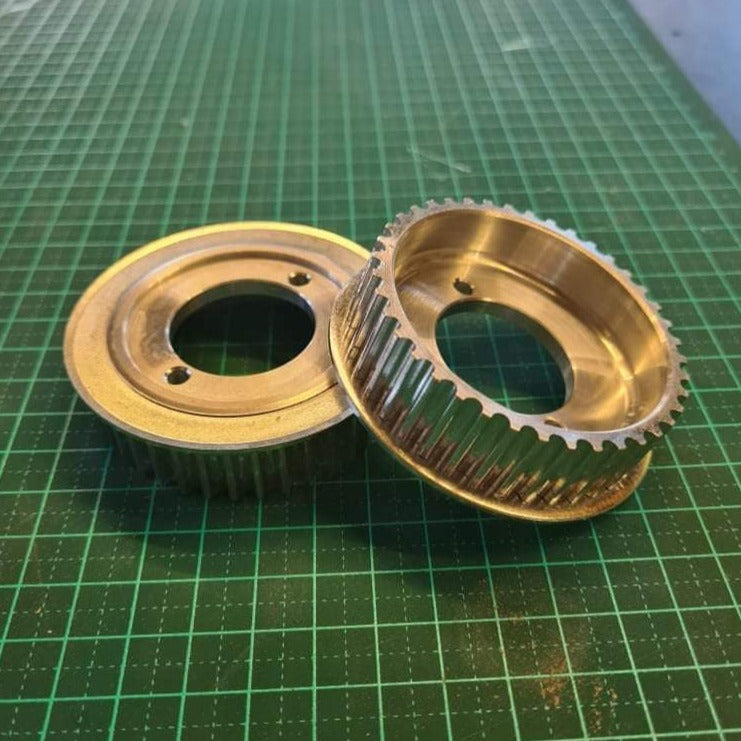

The Boardnamics press fit wheel pulley is a high performance pulley designed to fit to both kegel and abec flywheel cores. They utilize a bearing and a press-fit assembly into the wheel for high performance operation.
Bearing Pulley Advantage:
Pulley runout or “wobble” on standard bolt-on pulleys hurt your drive system by constantly stretching and loosening the belt as the pulley rotates. The bolts have play and loosen overtime which causes the pulley to shift out of center. The belt can skip more because of this. Pulleys with integrated bearings lock the pulley centered. Bearing pulleys don’t require a retainer on the outside, providing a cleaner look.
Pulley is CNC machined from 6061-T6 aluminum. Pins are stainless steel for extra durability where it counts. Adapters for Kegel/Labeda wheels and Flywheel/ABEC both available.
Available in 36T and 40T counts. Being modular in design, changing tooth counts is easy and doesn’t require removing the entire pulley. Email us for additional adapters or tooth counts.
Requires 45mm+ axle. Typical longboard axle is only 34mm. Precision hangers required!
Specifications:
Profile: HTD5M
Tooth Width: 16mm
Weight: ≈160g each
What’s included:
x2 36T Pulley
x2 ABEC or Kegel Adapter
x2 Aluminum Spacer
x2 608-2RS Bearing
x4 M4x8mm Screw
